Product code: SPE336MONIN-BL
Monitor Audio Creator C2M-T2X In-Ceiling Speaker
Medium-sized Tier 2 in-ceiling loudspeaker used both as a single stereo speaker for music or as di-pole or bi-pole surround sound speaker for exhilarating movie sound. £450
POA
Monitor Audio Creator C2M-T2X In-Ceiling Speaker










-
C2M-T2X
Ideal for both music and movies, the medium-sized Tier 2 in-ceiling C2M-T2X allows the user to switch between Music mode for wide dispersion and Movie mode for spatial effects. It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.
C2M-T2X has three modes:
- Cinema Mono FX (Di-Pole, tweeters out of phase)
- Mono Wide Dispersion (Bi-Pole, tweeters in phase)
- Single Speaker Stereo (two binding posts accepting connection to two separate amplifier channels)
C2M-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.

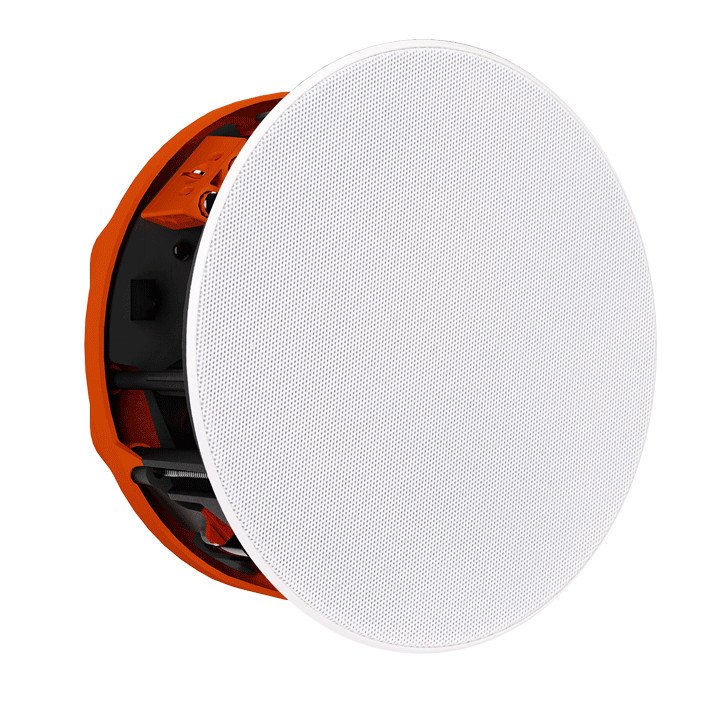

Optional square or premium grille can be used with this model.
£450
For the best Home Cinema Design, We include this product within our use of home theatre design software
Key Features
- Ideal for installations where pristine acoustic performance is required.
- Switchable design for three modes
- Two-way design
- 2 x 1" (25 mm) C-CAM tweeters with UD Waveguide II for lifelike sound
- 1 x 7" (178 mm) RST II dual-coil bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
-
System Format
2–WayChannels
1 (Mono)
2 (Stereo)Frequency Response, Installed (-6dB)
35 Hz – 30 kHzNominal Impedance
4 Ohm (Mono)
8 Ohm (Stereo)Minimum Impedance (20Hz to 20kHz)
3.4 Ohm @ 15 kHz (Mono)
6.8 Ohm @ 15 kHz (Stereo)Sensitivity (2.83Vrms@1m, Installed)
86 dBMaximum Peak SPL* (single speaker @ 1m Z-Weighted)
(Mono) 114 dBContinuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W (Mono)
2 x 75 W (Stereo)Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
40-150 W (Mono)
2 x 75 W (Stereo)Drive Unit Complement
1 x 7" (178 mm) RST II dual-coil bass driver
2 x 1" (25 mm) C-CAM tweeterCrossover Frequency
LF/HF: 2.25 kHzMounting Depth
99 mm (37/8")Cut-Out Hole Diameter
212 mm (83/8")External Dimensions (Including Grille (H x W x D))
242 x 242 x 103 mm (91/2 x 91/2 x 44/16")Weight (each)
2.1 kg (4 lb 10 oz)Pre-Construction Bracket
CM-BCabinet Finish
Matt black & Orange & BronzeSold As
Single UnitCorner Switch
On/OffHF Switch
- /0/ +Music/Movie Switch
Music/MovieMono/Stereo Switch
Mono/Stereo -
MONITOR AUDIO
Monitor Audio is a British owned and managed global specialist in hi-fi loudspeaker design. For over forty years Monitor Audio have been creating stereo and surround sound systems and a range of sonically matched architectural speakers for ultra discreet high quality sound around the home, outside and in commercial installations.
