Product code: APA118MARPREBL

Marantz AV7706 11.2 Channel 8K Ultra HD Pre-Amp Black

11.2ch 8K AV Surround Pre-Amplifier with 3D Audio and HEOS Built-in

POA
Product enquiry
Marantz AV7706 11.2 Channel 8K Ultra HD Pre-Amp Black
Marantz AV7706 11.2 Channel 8K Ultra HD Pre-Amp Black

How would you like to be contacted?

This site is protected by reCAPTCHA and the Google Privacy Policy and terms of service apply.

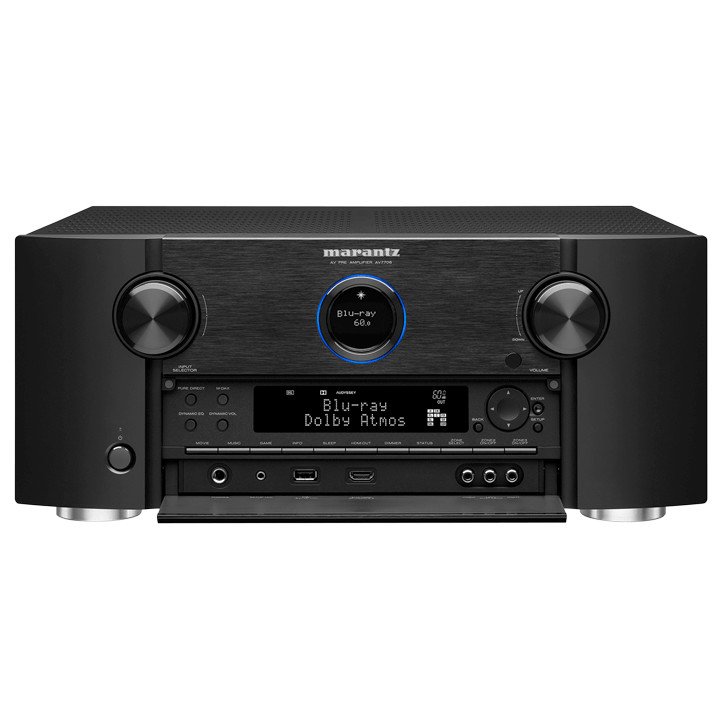

Marantz AV7706 Home Cinema Pre Amplifier Front ISO Angle
Marantz AV7706 Home Cinema Pre Amplifier Front Open Cover

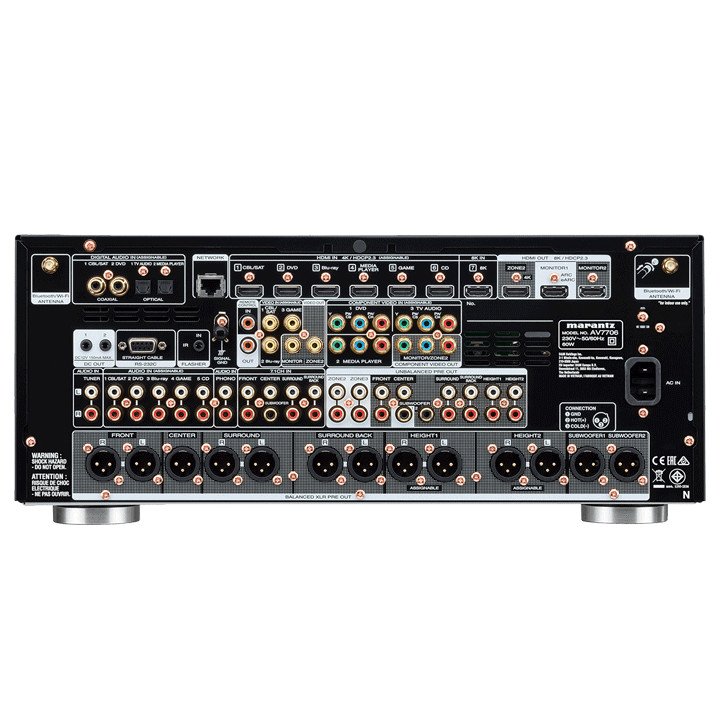

Marantz AV7706 Home Cinema Pre Amplifier Back Connections

  • Marantz - AV7706 :

    11.2CH 8K ULTRA HD AV SURROUND PRE-AMPLIFIER

    Created with passion and extraordinaty attention to detail, every element brings you closer to the music you love

    Features
    Advanced 11.2 channel pre-amplifier
    Advanced 8K HDMI connectivity with eARC support
    Full 3D audio support
    8K HDMI Connectivity
    IMAX® Enhanced
    High-Resolution Audio Support

    The new Marantz AV7706 leverages decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment. The Pre-Amplifier expertly handles any kind of high-resolution stereo or multichannel audio format.

    Advanced 11.2 channel pre-amplifier

    Experience a versatile home theatre setup with the new Marantz AV7706 processor/pre-amplifier. Featuring 11.2 channel XLR and RCA pre-outs, the AV7706 is built with masterful-quality external power amplification for the most demanding active speakers. Enjoy the audiophile sound you expect from Marantz combined with the latest video and audio decoding, as well as voice control with your favourite voice assistants.

    Sophisticated engineering

    With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7706 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055, and MM7025.

    Advanced 8K HDMI connectivity with eARC support

    The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favourite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D, and BT.2020 pass-through while the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs.

    Full 3D audio support

    Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualisation Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced, and Auro-3D®.

    Marantz HDAM and current feedback topology


    The AV7706 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.

    The next chapter in movie entertainment

    The new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.

    More than 60 Years of audiophile heritage

    Founded in 1953, Marantz has a rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV7706 continues our long tradition of delivering a best-in-class listening experience for music and cinema.

  • Multichannel Surround
    DTS HD Master / DTS:X    Yes / Yes
    DTS:X Pro    No
    DTS Neo:X / DTS Neural:X    No / Yes
    DTS Virtual:X    Yes
    Dolby TrueHD / Dolby Atmos    Yes / Yes
    Dolby ProLogic Il / Dolby Surround    No / Yes
    Dolby Height Virtualization    Yes
    Front Wide Speakers: Dolby / DTS    No
    Auro 3D    Yes
    IMAX Enhanced    Yes
    MPEG-H    Yes
    Multichannel Stereo    Yes
    Max Number of Processing (Preamp) Channels    11.2

    Sound Enhancements
    Mono Block Power Amp Construction    No
    Discrete Power Amplifier    No
    110th Anniversary Audio Tuning    No
    Iron diecast feet    No
    Copper plated transformer base    No
    All black interior    No
    D.D.S.C. HD Digital    No
    Pure Direct    Yes
    High Grade Audio Components    Yes
    Gold plated RCA terminals    Yes
    Clock Jitter Reducer    Yes
    Alpha Processing    No
    Audyssey    MultEQ XT32
    Audyssey Dynamic EQ / Dynamic Volume    Yes / Yes
    Audyssey LFC    Yes
    Audyssey APP Support    Yes
    Speaker Setup Presets    2
    Compressed Audio Restorer    No

    Network
    HEOS Multi-room and Streaming    Yes
    Lossy formats MP3 / WMA / AAC    Yes / Yes / Yes
    Lossless formats FLAC / ALAC / WAV    Yes / Yes / Yes
    DSD Audio Streaming    up to DSD5.6
    FLAC HD 192/24    Yes
    WAV 192/24    Yes
    ALAC 192/24    Yes
    Gapless Playback    Yes (FLAC, WAV, ALAC, DSD)
    AirPlay 2    Yes
    Roon Tested    Yes
    Internet radio    TuneIn
    Spotify Connect* / Tidal* / Deezer* / others *    Yes / Yes / Yes / Yes
    Amazon Prime Music* / Pandora*    Yes / Yes
    Compatible with Remote APP for Smart Phones    Yes
    Compatible with Remote APP for Tablets    Yes
    Ethernet Ports    Yes
    Wi-Fi    Yes
    Bluetooth    Yes
    Bluetooth Headphone transmission    Yes

    HDMI
    HDMI Inputs: Back / Front    7 / 1
    HDCP2.3 support    Yes
    HDMI Outputs: Main / Zone    2 / 1
    HDMI max Resolution (8k / 4k)    8k/60 - 4k/120
    Video Conversion Analog -> HDMI    Yes
    HDMI to HDMI Scaling    up to 8K 60/50
    HDMI: 8K / 4K / CEC / eARC    Yes / Yes / Yes / Yes
    HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG    Yes / Yes / Yes / Yes
    HDMI: ALLM / QMS / QFT / VRR    Yes / Yes / Yes / Yes
    HDMI Pass-Through in Standby Mode    Yes
    DSD Audio Capability    Yes
    Multi-Room / CI
    HEOS Multi-Room Integrated    Yes
    Multi-Room Zones    3
    Main room multichanel audio - Zone stereo downmix    Yes
    Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog    Yes (2ch) / Yes (2ch) / Yes / Yes
    Zone Audio Output: Speaker / Preout    No / Yes
    Zone HDMI Output from HDMI Source    Yes
    Webbrowser Setup    Yes
    IP Control / RS232 Control / Web Control / App Control    Yes / Yes / Yes / Yes
    Remote In / Out    No
    DC Trigger Output    2

    Others
    Voice Control - Works with Amazon Alexa    Yes
    Voice Control - Google Assist / Apple Siri    Yes / Yes
    Voice Control - Microphone built-in    No
    Auto Speaker Setup by Microphone    Audyssey MultEQ XT32
    FL Display    2 lines + port hole
    Graphic User Interface - GUI    Advanced
    ISF Certification    Yes
    GUI Languages    9
    Setup Assistant    Yes
    Firmware Update by Network / USB    Yes / Yes
    Variable Cross Over    Yes
    Optimized Bass Redirection    Yes
    Bass Sync    Yes
    ECO Mode    No
    Auto Power off    Yes
    Sleep Timer    Yes

    Inputs/Outputs
    Composite In / Out    3+1 / 2
    Component In / Out    3 / 1
    HDMI In / Out    7+1 / 3
    Multi-Room Video Out: Video / HDMI    Yes / Yes
    Analogue In / Out    6+1 / No
    Phono (MM) In    Yes
    Digital In: Optical / Coaxial    2 / 2
    Multi-Room Out: analog / digital    2 / No
    Multichannel Pre Out    Yes (11.2 RCA & 11.2 XLR)
    Subwoofer Out    2 (independant)
    7.1 multichannel input    Yes
    Speaker Terminal: Gold plated screw / regular screw    No
    Number of Speaker Terminals    No
    Speaker A / B    assignable pre out
    Bi-amp drive    assignable pre out
    Multi-Room Speaker Terminal    pre out
    Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB    Yes / Yes / No / Yes / Yes
    USB Audio (Front) / Made for iPod / Made for iPhone®    Yes / AirPlay / AirPlay
    DAB / DAB+ tuner    No
    FM Tuner with RDS    No

    Specifications
    Number of poweramps    No
    Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)    No
    Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)    No
    Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)    No
    Power Output (6 ohm, 1 kHz, 1% 1ch Drive)    No

    General
    Available colors: Black / Premium Silver    No
    Metal Front Panel    Yes
    System Remote Control    No
    Pre-Programmed / Learnable / LCD Display    Yes / No / No
    Power Consumption in W    60
    Standby Consumption in W    0.2
    CEC Standby Consumption in W    0.5
    Network Control On Consumption in W    3.7

    Maximum Dimensions
    Antenna:Horizontal:(W x D x H) in mm
    Antenna:Vertical :(W x D x H) in mm
    W/o Antenna:(W x D x H) in mm    440 x 411 x 185
    ( 440 x 411 x 247 )
    【 440 x 392 x 185 】
    Weight in kg    10.4
    Carton Maximum Dimensions (W x D x H) in mm    537 x 497 x 281
    Carton Weight (inc. product) in kg    13.1
