Product code: AVR103ANTAVRBL

ANTHEM MRX540 8K AV Receiver

7.2 Pre-Amplifier / 5 Amplifier Channel A/V receiver with Dolby Atmos, DTS:X and IMAX Enhanced.

£2,449.00
ANTHEM MRX540 Front

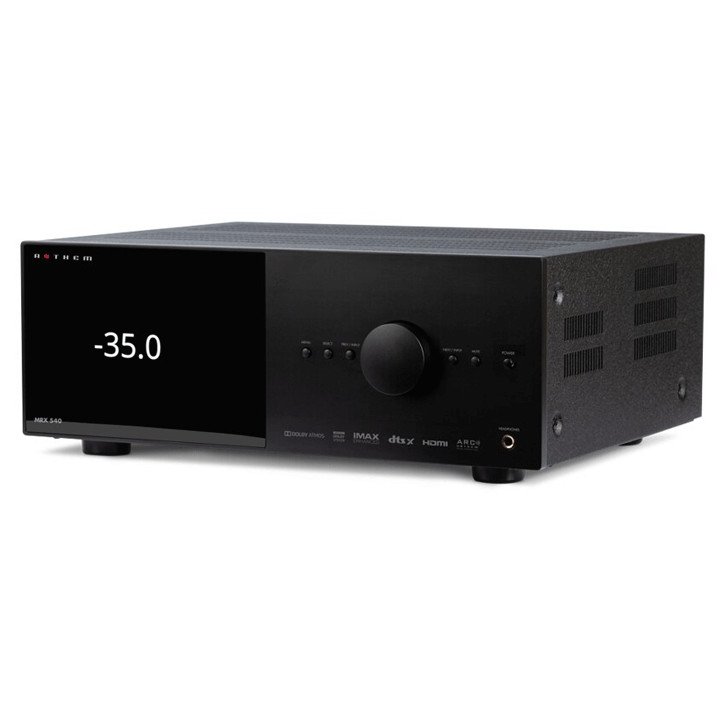

ANTHEM MRX540 Front Angle

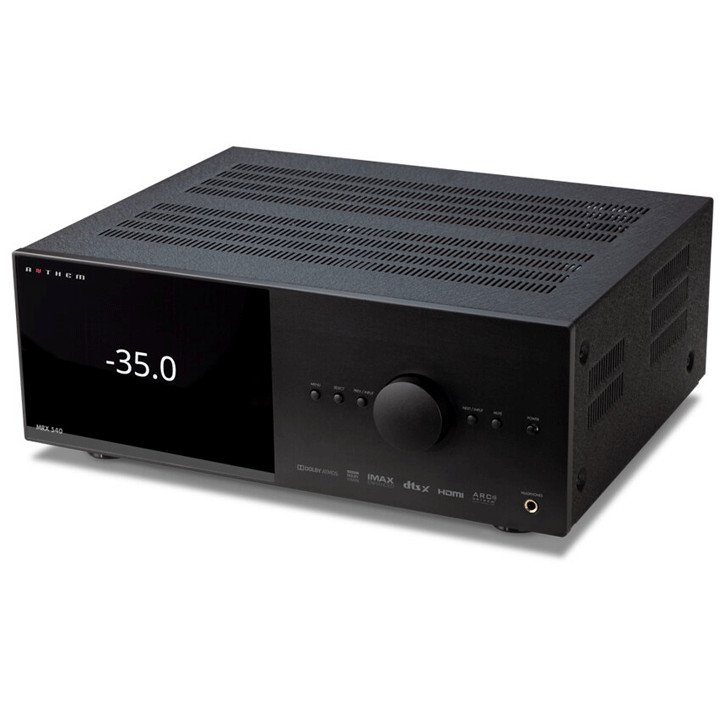

ANTHEM MRX540 Front Angle 1

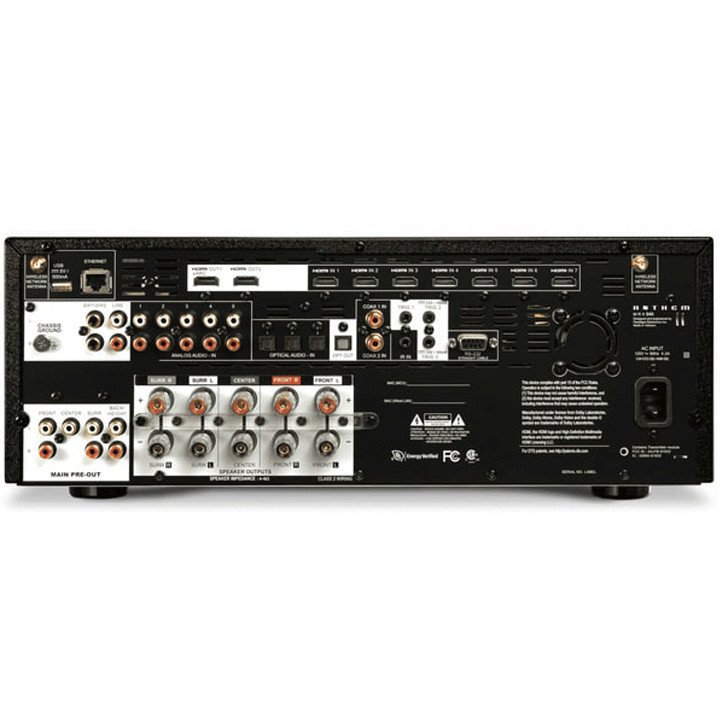

ANTHEM MRX540 Back

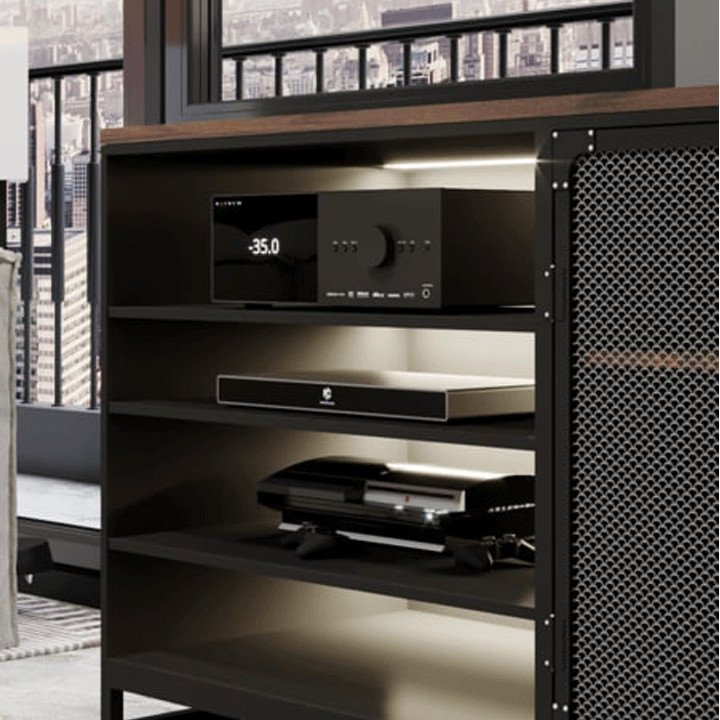

ANTHEM MRX540 Lifestyle

  • 7.2 Pre-Amplifier / 5 Amplifier Channel A/V receiver with Dolby Atmos, DTS:X and IMAX Enhanced. 100-watts per channel continuous power into 8 ohms. Includes ARC (Anthem Room Correction). HDMI v2.1 8K Upgradeable.

    Anthem’s MRX A/V Receivers are about maximizing performance for the money. Building on the feature set of our previous models, we’ve added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.

    The MRX 540 is a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 HDMI inputs and 2 outputs, plus eARC. Ultra HD signals are passed through unaltered up to 18.2 Gbps with Dolby Vision, HDR and Hybrid Log Gamma support.

    Dolby vision
    Feel the story’s full emotional impact, bringing your entertainment to life with an ultravivid picture, brighter highlights, and darker shadows.

    Dolby Atmos
    Sound has never sounded this good. Feel a deeper connection to the stories and music you love with sound that moves all around you with breathtaking realism.

    DTS:X
    DTS:X is the next generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity.

    IMAX Enhanced
    IMAX ENHANCED is the only way to experience IMAX’s signature picture, sound and scale in the home, IMAX Enhanced combines digitally remastered 4K HDR content and DTS audio technologies with best-in-class consumer electronics products and streaming platforms.

    Airplay
    All AVM/MRX components support Apple AirPlay and AirPlay 2 which let the user stream content, plus songs stored on local networks, to any AirPlay-enabled device. AirPlay 2 adds support for multidevice play so you can hear your music throughout the home.

    Google
    Google Chromecast, lets the user stream content from any Android device like a phone, tablet, or laptop to any AVM/MRX components. If you can listen to it on your phone, it can be Cast to your Anthem receiver or processor

    Spotify
    All AVM/MRX components support Spotify Connect allowing you to turn your smartphone into a remote and allows you to play, pause, and stream content from Spotify

    Bluetooth
    All AVM/MRX components support Bluetooth to stream songs stored on devices like phones, tablets, and laptops.

    Roon
    All AVM/MRX components support Roon allowing you to connect, stream and manage your music collection. Roon tells your music what to do and where to do it.

    • 32-Bit/768 kHz DAC (AKM AK4458VN)
    • Wi-Fi / Ethernet Enabled
    • IP and Serial Control
    • Dolby Atmos
    • DTS:X, DTS Virtual:X
    • HMDI eARC
    • Apple AirPlay2
    • Google Chromecast (Audio)
    • Bluetooth v4.2

    HDMI & VIDEO
    • Dolby Vision
    • IMAX Enhanced
    • HDMI 2.0b & HDCP 2.2
    • 4:4:4 Subsampling @ 4K60 (18.2 Gbps)
    • High Dynamic Range (HDR)
    • Hybrid Log Gamma (HLG)
    • BT.2020 Color Gamut
    • 4K 50/60 Switching
    • Zone 2 HDMI Output

    1-3 Working Days Delivery

  • Maximum Output (<0.1% THD): 5.2 VRMS, 7.1VRMS

    Frequency Response: 20Hz-30kHz +/-0.2dB

    THD+N (2Vrms Output): -100dB

    S/N Ratio (2Vrms Output, IEC-A Filter): 110dB

    Speaker Impedance: 4Ohms or Higher

    Channels 1-5, two Driven into 8ohms: 140W

    Channels 1-5, two Driven into 6ohms: 170W

    Remaining, two Driven into 8Ohms: 60W

    Remaining, two Driven into 6Ohms: 75W

    Typical Load: 485W

    Standby: 0.3W

    Standby IP Control Enabled: 1.8W

    Standby HDMI Bypass Enabled: 4.9W

    Height (w/ feet): 6”

    Height w/ Rackmount: 4U

    Width: 17”

    Depth: 14-1/2”

    Weight: 15.1kg

  • Anthem AV

    Anthem AV have a distinction for their Premium Audio Video Receivers and Powered Amplifiers in bespoke HiFi and home cinema designs. Anthem products provide an unprecedented level of reliability and functionality; they deliver one of the industry’s highest performance-to-value equation.
    Anthem products are consistently a brand of choice for entertainment and music, knowledgeable audiophiles, professional musicians and engineers with easy to use tools and the ability to connect, control and optimise the Anthem AV range of products.
    Anthem AV outstanding engineering team create hand-designed circuit boards and huge, precision-wound toroidal transformers.
