Product code: AVR106ANTAVRBL
ANTHEM MRX1140
15.2 Pre-Amplifier / 11 Amplifier Channel A/V receiver with Dolby Atmos, DTS:X and IMAX Enhanced.
£4,150.00-
ANTHEM MRX 1140 | 140W

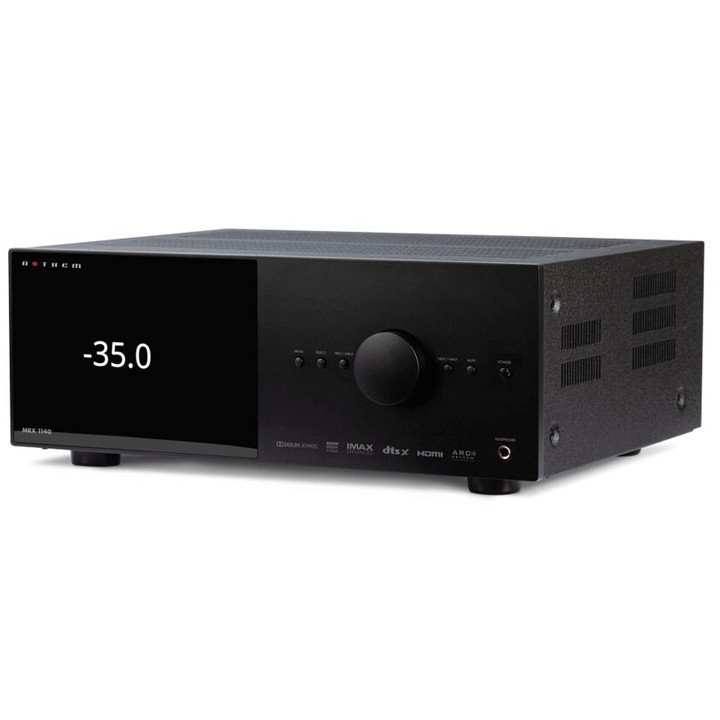

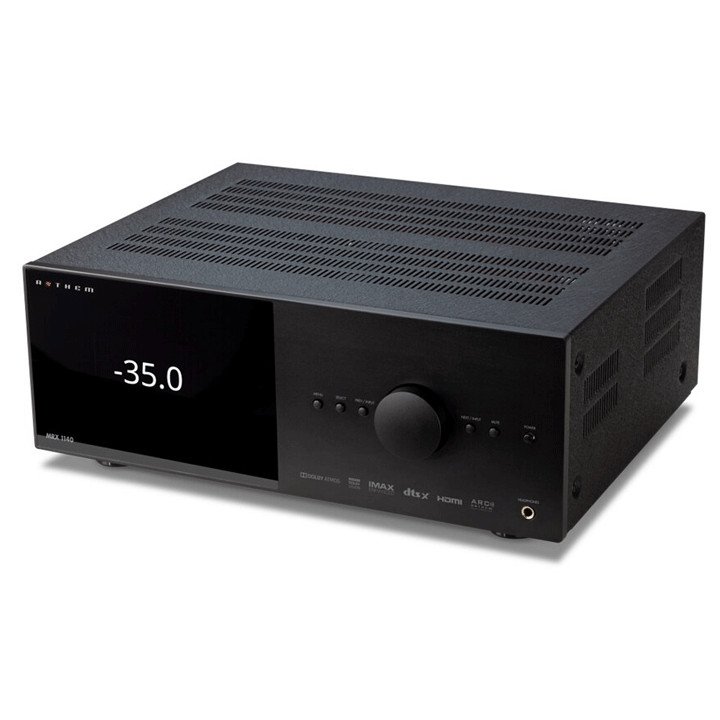

Anthem MRX 1140 15.2 Pre-Amplifier / 11 Amplifier Channel A/V Receiver
Anthem’s MRX A/V Receivers are about maximizing performance for the money. Building on the feature set of previous models, the MRX 1140 now include:
Features include:
- New Electronics platform, up to 15.2 pre-amplifier channels with 11 amplifier channels, HDMI 2.0b HDCP 2.2, hardware upgradeable to HDMI 2.1 (8K)
- On select models (MRX 1140, AVM 90 and AVM 70), object-oriented audio codecs have been updated to the latest version of DTS:X Pro.
- All object-oriented audio codecs have been updated to the latest version of DTS:X and Dolby Atmos.
- IMAX Enhanced
- ARC Genesis now features a more precise microphone, ensuring better results in any listening environment.
- Platform Agnostic Streaming with AirPlay2 (coming soon), Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect (coming soon!) and Roon (coming soon!)
- Reliable Networking Platform with web-based setup and over-the-air updates
- Next-Generation DSP Platform
- Modernized Design with high resolution front panel display
- Amp matrixing with up to 10 re-assignable channels
- Two Independent sub outputs on MRX 1140, allow ARC Genesis to correct multiple subs individually for frequency response and phase alignment.
- Independent HDMI Zone 2 output.
Audio Features:
- 15.2 pre-amplifier channels with 11 amplifier channels. 140 watts per channel continuous power into 8 ohms.
- Amp matrixing with up to 10 re-assignable channels
- Two independent subwoofer outputs
- Auto Subwoofer Phase Adjustments (ARC Genesis)
- Auto Subwoofer Polarity Adjustments (ARC Genesis)
- Latest Implementation of ARC Genesis
- Four Speaker Profile Memories
- 2” / 5 cm Speaker Distance Increments
- 0.5dB Level Increments
- Super Sub Front Setting
HDMI & Video:
- Dolby Vision
- IMAX Enhanced
- HDMI 2.0b & HDCP 2.2 (hardware upgradeable to HDMI 2.1 8K)
- HDMI eARC
- 4:4:4 Subsampling @4K60 (18.2 Gbps)
- High Dynamic Range (HDR)
- Hybrid Log Gamma (HLG)
- BT.2020 Color Gamut
- 4K 50/60 Switching
- Zone 2 HDMI Output
- Dual HDMI Outputs
- Standby Pass-Through
Decoding:
- Dolby Atmos
- Dolby HD
- DTS:X Pro
- DTS:X
- DTS-HD Master Audio
Custom Installation:
- IP Control
- RS-232 Control
- IR Input
- Three 12V Trigger Outputs
- Pre-made Control Drivers
- Save and Load Settings
- Import and Export Settings
- Rackmount kit (sold separately)
Streaming:
- Apple Airplay (coming soon)
- Apple Airplay 2 (coming soon)
- Google Chromecast Audio
- Bluetooth
- Spotify Connect (coming soon)
- Roon (coming soon)
Listening Modes:
- Anthem Logic
- Dolby Surround
- DTS Neural:X
- DTS Virtual:X
- Stereo
- All Channel Stereo
- Mono
- All Channel Mono
Additional Features:
- Anthem Web User Interface
- Advanced Load Monitoring (ALM)
- 30 Input Configurations
- Input trim adjustments
- Power-on Input Assignment
- Auto Power Off
- Eco Mode (standby)
- Over-the-air Network updates
- USB updates
- Beta updates (over-the-air)
- Backlit Remote Control
- Toroidal Transformer
-
PREAMPLIFIER
Maximum Output (<0.1% THD) 5.2 VRMS, 7.1VRMS
Frequency Response 20Hz - 30KHz +/-0.2dB
Frequency Response, Analog-Direct N/A
THD+N (2 Vrms output) -100 dB
S/N Ratio (2 Vrms output, IEC-A filter) 110 dB
PREAMPLIFIER + AMPLIFIER (1 W OUTPUT)
MRX 1140 / MRX 740 SNR: 91 dB ch 1-5, 86dB others
MAXIMUM CONTINUOUS OUTPUT (1% THD) MRX 1140
Channels 1-5, Two Driven into 8 Ohms 140 W
Channels 1-5, Two Driven into 6 Ohms 170 W
Remaining Channels, Two Driven into 8 Ohms 60 W
Remaining Channels, Two Driven into 6 Ohms 75 W
DIMENSIONS
Height (without feet) 6" (15.24 cm)
Height with Rackmount Kit 4U
Width 17" (43.18 cm)
Depth (including wifi ant not power cord) 14-1/2" (36.4 cm)WEIGHT
MRX 1140 33.6 lb (15.2 Kg)
POWER REQUIREMENT
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
ANTHEM MRX1140 Full Specification -
Anthem AV
Anthem AV have a distinction for their Premium Audio Video Receivers and Powered Amplifiers in bespoke HiFi and home cinema designs. Anthem products provide an unprecedented level of reliability and functionality; they deliver one of the industry’s highest performance-to-value equation.
Anthem products are consistently a brand of choice for entertainment and music, knowledgeable audiophiles, professional musicians and engineers with easy to use tools and the ability to connect, control and optimise the Anthem AV range of products.
Anthem AV outstanding engineering team create hand-designed circuit boards and huge, precision-wound toroidal transformers.
