Product code: AAM162ARCAMPBL

ARCAM PA410

4 Channel Power Amplifier: 4 X 70W Class A/B

£1,499.00
ARCAM PA410 Front

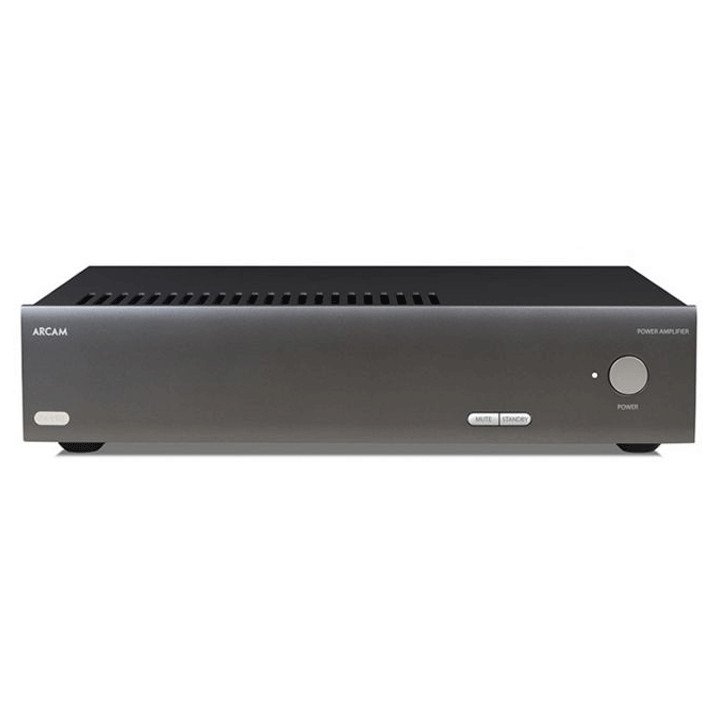

ARCAM PA410 Front Angle

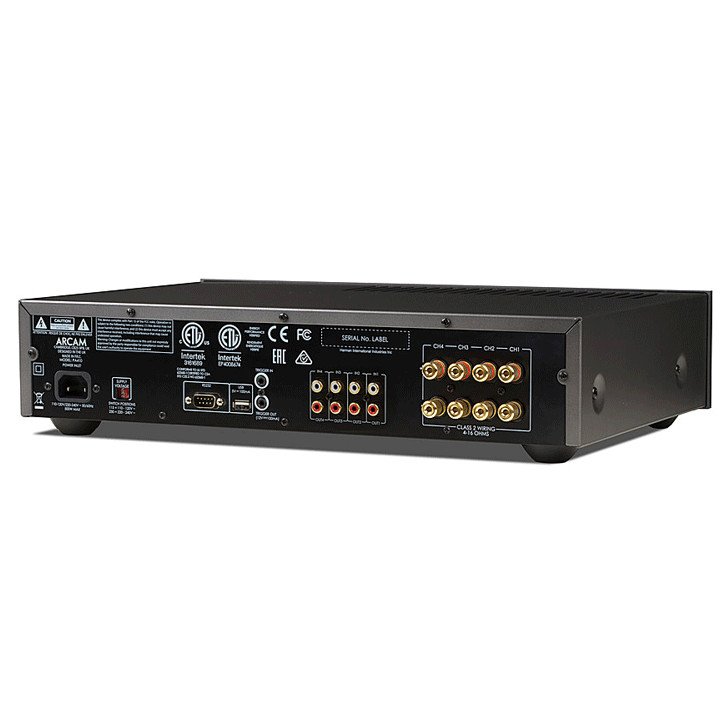

ARCAM PA410 Rear

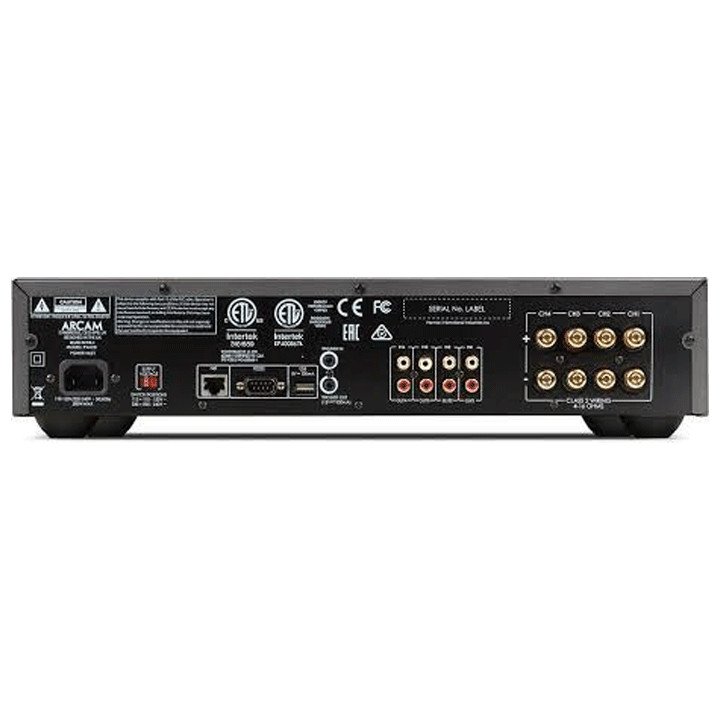

ARCAM PA410 Connections

  • PA410

    Exceptional Power, Immersive Sound

    The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

    Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

    The Arcam PA410 is a high performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

    It offers truly exceptional power and immersive sound.

    Features
    • 4 Channel Power Amplifier
    • 4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)
    • Toroidal transformer
    • RS232 control
  • Continuous power output at 0.2% THD per channel

    Four channels driven
    4Ω / 8Ω, 20Hz – 20kHz - 70W / 50W

    Two channels driven,
    4Ω / 8Ω, 20Hz – 20kHz - 90W / 60W

    Harmonic distortion,
    80% power, 8Ω at 1kHz - 0.003%

    Input sensitivity
    50W / 8Ω - 600mV RMS

    Signal/Noise ratio (A-wtd)
    50W / 8Ω - 105dB

    Input impedance -
    10kΩ

    Frequency response -
    20 - 20kHz +/-0.05dB

    Mains voltage -
    110–120V or 220–240V, 50–60Hz

    Power consumption (maximum) -
    700W

    Power consumption (idle, typical) -
    90W (Thermal dissipation approx. 340 BTU/hour)

    Power consumption (standby) -
    <0.5W

    Dimensions W x H x D (including feet, control knob and speaker terminals)
    433x325x105mm

    Weight (net)
    10kg
