Product code: AAM161ARCAMPBL
ARCAM PA240
Class G 2 Channel Power Amplifier
£2,249.00



-
PA240
Exceptional Power, Immersive Sound
The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.
Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
PRODUCT DETAILS
- 2 Channel Power Amplifier
- 2 x 225W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)
- 1 x 790W Class G bridged mode (8ohm, 20Hz-20kHz, 0.2% THD)
- Class G amplification with 50W of class A operation
- Toroidal transformer
- Stereo, Dual Mono or Bridged operation

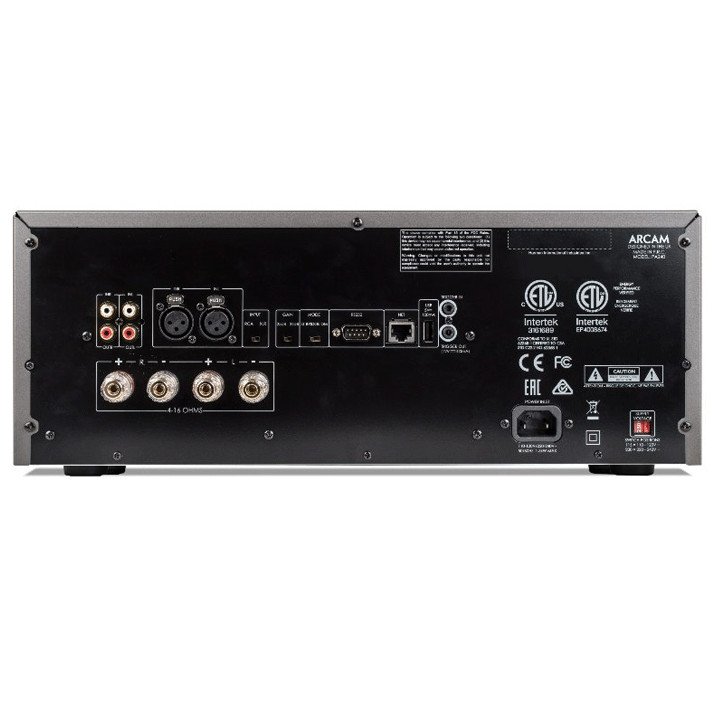

- Ethernet, RS232 control
- Switchable RCA or balanced XLR inputs
Delivery 4-7 Working Days
Get the ARCAM app
Control the UPnP audio and basic functions of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.
-
SPECIFICATION
Continuous power output at 0.2% THD per channel
2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz: 380W/225W
1 channel driven, 8Ω bridged mode, 20-20kHz: 790W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.001%Inputs
Input sensitivity
50W / 8Ω- RCA Type: 1.15V RMS
- XLR Type: 2.3V RMS
Signal/Noise ratio (A-wtd)
50W / 8Ω: 110dBInput impedance:
10kΩFrequency response:
20 - 20kHz +/-0.05dBGeneral
Mains voltage:
110–120V or 220–240V, 50–60HzPower consumption (maximum):
1.5kWPower consumption (idle, typical):
90W (Thermal dissipation approx. 340 BTU/hour)Power consumption (standby):
<0.5WDimensions W x H x D (including feet, control knob and speaker terminals):
433 x 425 x 177mmWeight (net):
18kgWeight (packed):
19.7kg -
